Compatible SFP Transceivers for HP 1810-48G Switch (J9660A)

Today, small and midsize businesses are embracing mobile and cloud technologies to improve employee productivity and engage with customers. More business needs an affordable, high-performance and secure wired and wireless infrastructure that can support the growing number of mobile devices and cloud-based applications. When asking for a recommendation for SMB switches, many people always recommend the HP because it has most of the same capabilities such as full management capability, rock solid operation and great support (as the Cisco), but at half the price. And HP 1810-48G switch is one of such SMB switches. This article intends to give a simple introduction to HP 1810-48G switch and provide compatible SFP transceiver solutions for it.

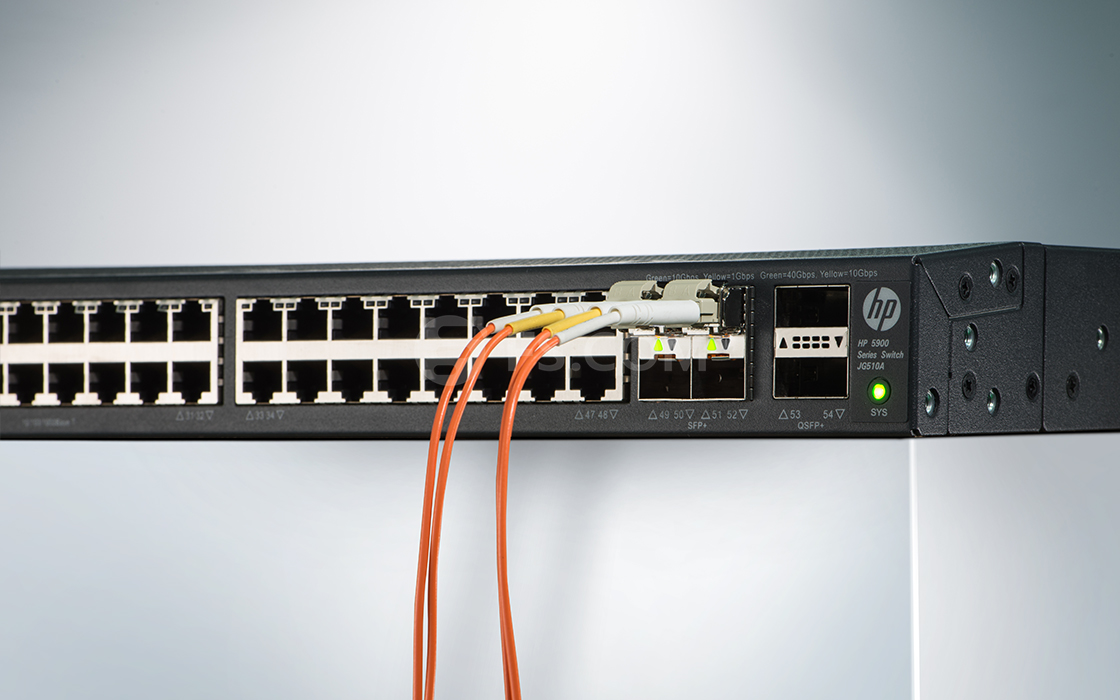

HP 1810-48G Switch (J9660A)

The HP 1810-48G switch is a basic smart managed Gigabit Ethernet Layer 2 switch that is designed for small businesses. This HP ProCurve 48 port gigabit switch has four additional true Gigabit Ethernet SFP ports (52 total active ports) for fiber connectivity, which supports Gigabit-SX, -LX, or 100-FX and SFP 1G RJ-45 copper connections. Besides, it supports flexible deployment options, including mounting on walls or ceilings, under tables, or desktop operation. More than anything, it comes with an anti-theft protection Kensington Lock slot, which allows switches to be secured in open-space deployments. A HP 1810-48G switch also has some customizable features, including VLANs, Spanning Tree and link aggregation trunking.

Key Features or Benefits:

• Customized operation using intuitive Web interface
• Flexible connection and deployment options
• Layer 2 operation at wire speeds
• VLANs and link aggregation support

HP ProCurve Mini-GBICs and SFPs

HP ProCurve transceivers as the part of the networking accessories that are applied to their corresponding switches or routers. Thus, it is also important to get some knowledge of the HP ProCurve Mini-GBICs and SFPs. HP ProCurve Mini-GBICs and SFPs have three version: revision A, revision B and revision C. Though there is no big difference between these three version, some improvement will be added in the newest version. The “revision C” Mini-GBICs (eg. J4858C, J4859C, J4860C) are supported in all ProCurve products that support Mini-GBICs. In addition, “revision B” and “revision C” mini-GBICs can be used together in any ProCurve switch that supports mini-GBICs.

HP Compatible SFP Transceivers for HP 1810-48G Switch (J9660A)

According to HP ProCurve Networking Mini-GBIC Support Matrix, we can easily find out which Mini-GBICs and SFPs are supported for HP 1810-48G Switch (J9660A).

HP X111 100M SFP LC FX Transceiver (J9054C)

The HP J9054C compatible SFP transceiver provides 100Base-FX throughput up to 2km over multi-mode fibre (MMF) at a wavelength of 1310nm using a LC connector.  This hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. It is built to comply with multi-source agreement (MSA) standards to ensure seamless network integration.

HP X121 1G SFP LC SX Transceiver (J4858C)

This SFP (mini-GBIC) transceiver module is designed for use with HP network equipment and is equivalent to HP part number J4858C. It provides 100Base-FX throughput up to 550m over multi-mode fibre (MMF) at a wavelength of 850nm using a LC connector. The transceiver is hot-swappable input/output device which allows a Gigabit Ethernet port to link with a fibre optic network. And this transceiver may be mixed and deployed with other OEM or third party transceivers and will deliver seamless network performance.

HP X121 1G SFP LC LX Transceiver (J4859C)

HP ProCurve J4859C 1000BASE-LX-LC Mini-GBIC is a small form factor pluggable (SFP) gigabit LX transceiver that provides a full-duplex gigabit solution up to 10 km (singlemode) or 550 m (multimode). It is an SFP format gigabit transceiver with LC connectors using LX technology.

HP X121 1G SFP RJ45 T Transceiver (J8177C)

J8177C is a small form-factor pluggable (SFP) Gigabit copper transceiver with RJ45 connectors using 1000BaseT technology, that provides a full-duplex Gigabit solution up to 100m on Category 5 or better cable. It is guaranteed compatible for all HP switch and router product lines. This transceiver can be mixed and deployed with HP OEM transceivers for seamless network performance and interoperability.

Precautions：

To remove the J8177C from a Mini-GBIC slot on the switch, follow this procedure:

1. Remove the attached cable from the Mini-GBIC.

2. Without forcing the latch, swivel the latch 90 degrees to the unlocked position.

CAUTION: Do not force the latch! If the latch does not easily swivel 90 degrees, move the latch back to the locked position, re-seat the Mini-GBIC by pressing it into the switch, then repeat step 2.
